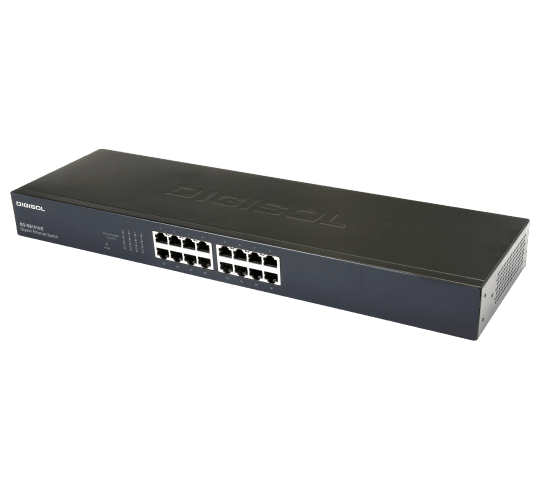

DG-GS1016/E (H/W Ver. A2) – DIGISOL 16 Port Gigabit Ethernet Unmanaged Switch
DIGISOL DG-GS1016/E (H/W Ver. A2) is a 10/100/1000 Mbps Ethernet rack-mountable unmanaged switch designed to enhance network performance. The switch comes with 16 x 10/100/1000 Mbps ports, offering solutions for accelerating bandwidth needs of small Ethernet workgroups. The switch uses store and forward packet-switching technology which offers reliable data transfer. This switch is ideal for network connectivity for the SOHO environment.
- Description
- Download
Description
KEY FEATURES
- Conforms to IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet standard
- IEEE 802.3ab 1000Base-T Gigabit Ethernet standard
- 16 10/100/1000Mbps UTP/STP RJ45 ports (Supports MDI/MDIX)
- Store and forward architecture
- Flow control: IEEE 802.3x full-duplex flow control, half-duplex Back pressure flow control
- Supports maximum 8K MAC Address table
- Supports N-Way auto-negotiation
- Each port supports address learning, allow configuring MAC address aging time
- Plug and Play installation
- Switching Capacity: 32Gbps Backplane
