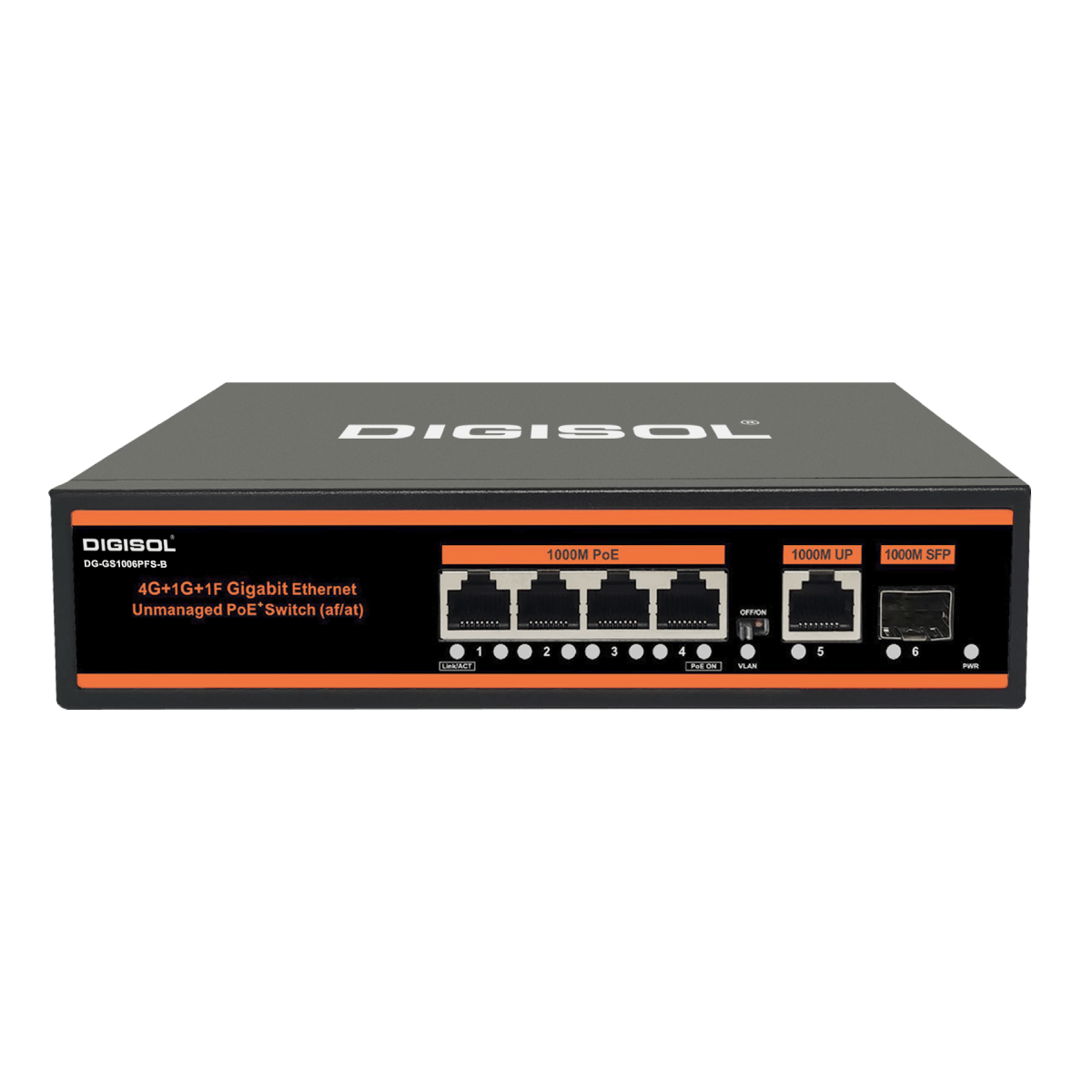

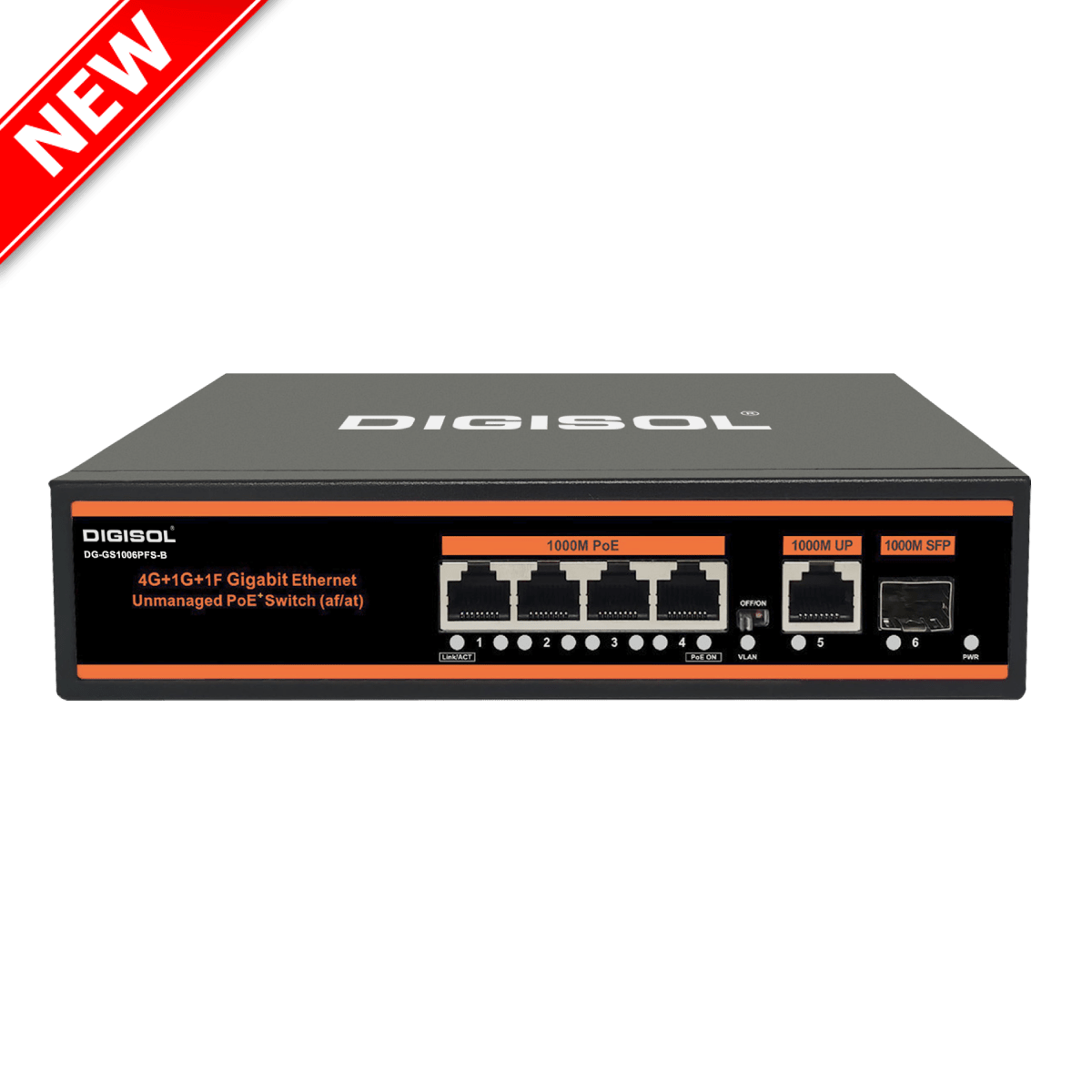

DIGISOL 4 Port PoE Gigabit Ethernet Unmanaged Switch with 2 1G Uplink Ports – DG-GS1006PFS-B
DIGISOLDG-GS1006PFS-B Switch offers 4×10/100/1000Mbps Ethernet ports with Power Over Ethernet support with 1*1000Mpbs Base-T and 1*1000Mbps SFP uplink port. These PoE ports are IEEE 802.3afand IEEE802.3 at compliant and can supply up to a Max. of30 watt per port and a total PoE powerof78Watt. The existing Ethernet cables can be used to powerup PoE compliant network devices. This eliminates the need of an external power source and power cabling for such devices. The switch provides flexibility to users for connecting a PoE or non PoE device. The PoE devices connected to switch can be easily identified by the separate PoE LED status indicators for each port.
- Description
- Download
Description
KEY FEATURES
- 4 PoE Gigabit ports + 1 10/100/1000 Base-T uplink +1 Gigabit SFP uplink port
- Support PoE power up to 15.4W (IEEE802.3af)/ 30W (IEEE802.3at)for PoE ports
- All ports support MDI/MDIX
- PoE: 78W
- Plug and play installation
- Forwarding Mode: Store-And-Forward
- Switching capacity: 12Gbps Full duplex
- Bult-in AC Power Supply
- Support 6KV lightning protection
- Fanless for quiet functioning with natural cooling
- Small and compact design, suitable for desktop orwall-mounting
- Supports distance of 250m at 10 Mbps
