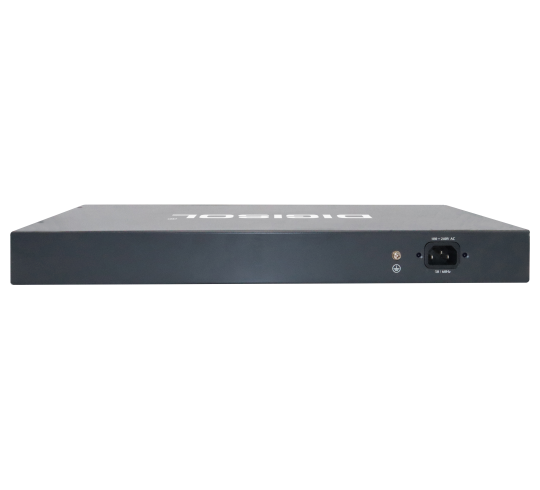

DIGISOL 24 Port L2+ PoE Managed Switch with 4*10G SFP+ Uplinks DG-GS2528HPX/U

DIGISOL DG-GS2528HPX/U is an L2+ Managed High PoE Switch with 24*10/100/1000Mbps RJ45 Port and 4*10Gbps SFP+ slots. The downlink ports 1 to 24 support the PoE standards IEEE 802.3af/at standards function with ports 1-8 also supporting IEEE 802.3bt. The maximum PoE budget supported on the switch is 480W. The switch is capable enough to automatically detect and identify PoE compliant electrical devices and supply power to them through network cables. Store-and-forward technology combined with dynamic memory allocation ensures efficient bandwidth allocation to each port. Supports static routing, provides complete security policies, QoS policies, and diversified VLAN functions, and is easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks, and campus networks.

Description

KEY FEATURES

• 24×10/100/1000Mbps downlink ports
• 4x10G SFP+ uplinks • 802.3af (15W) / 802.3at (30W)/ 802.3bt (60W)
• Supports flow control, LACP
• Energy-Efficient (IEEE802.3az)
• STP/MSTP/RSTP
• PD-ALIVE feature
• Switching capacity: 128Gbps
• MTBF: >100000 hour

Datasheet
