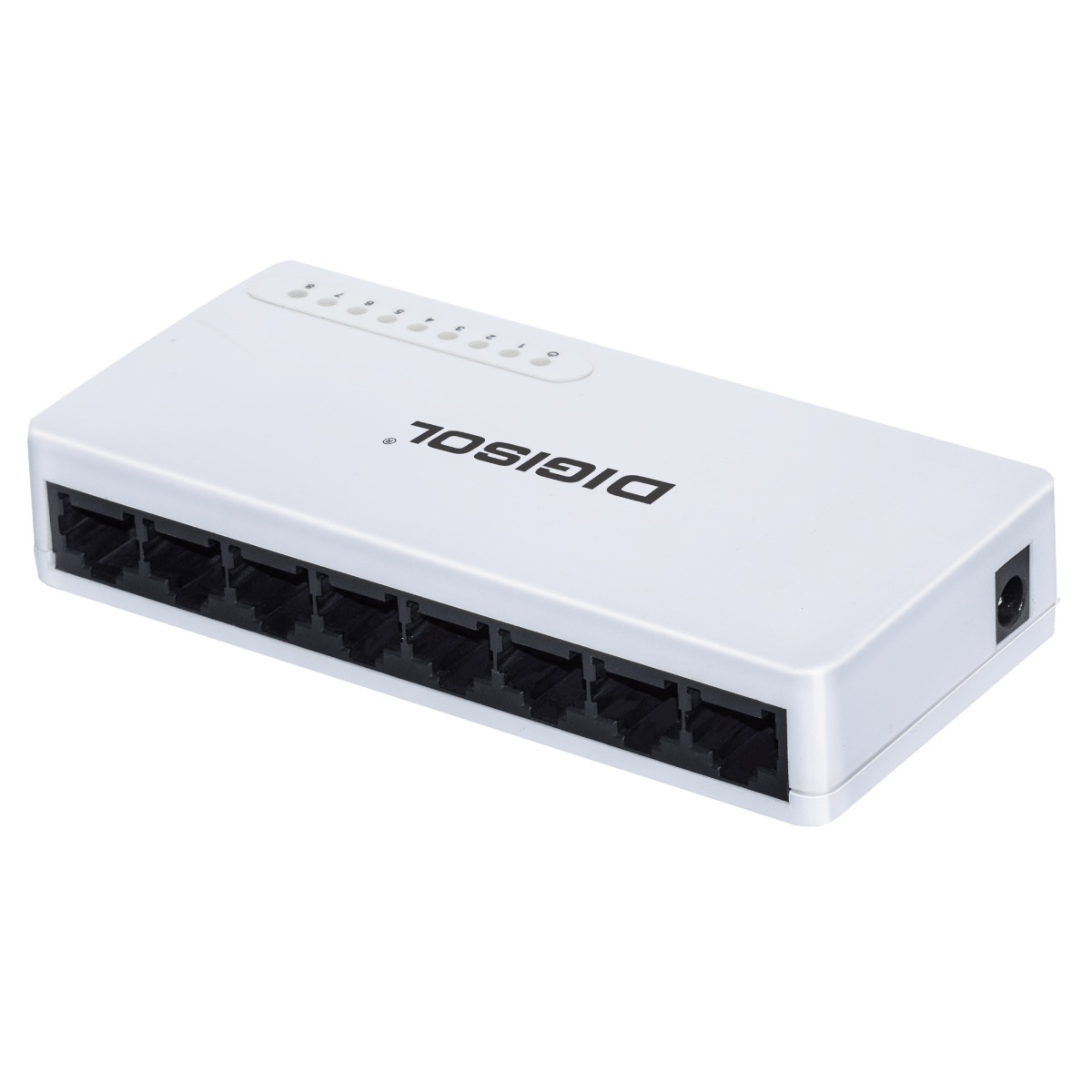

DG-FS1008DGE – DIGISOL 8 Port 10/100Mbps Ethernet Unmanaged Switch
DIGISOL DG-FS1008DGE is a 8-port 10/100Mbps Ethernet Unmanaged Switch. It provides high-performance Ethernet of tabletop level for you. DG-FS1008DGE provides 8 x 10/100Mbps Auto-Negotiation RJ45 ports. DG-FS1008DGE is a design of high integration level, exquisite, portable, easy to operate, which is suitable for the small and medium office and home network. The Switch adopts store-and-forward technology, combining the dynamic memory allocation, which make certains to effectively distribute the data to each port, when the switch is transmitting and receiving data, the flow-control guarantee the data to avoid loss of the data packet. The LED shows the situation of power and network.
- Description
- Download
Description
KEY FEATURES
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 1.6Gbps Switching Capacity
- 4K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps and 100Mbps hardware
- Fanless design ensures quiet operation
- Plug and Play design simplifies installation
- Power In : DC 5v 1000ma
Datasheet
