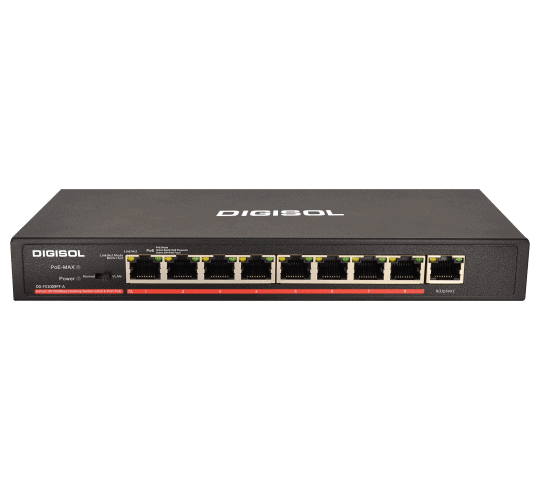

DG-FS1009PF-A (H/W Ver. A1) – Digisol Fast Ethernet Unmanaged Desktop Switch with 8 PoE Ports and 1 Uplink Port

DG-FS1009PF-A (H/W Ver. A1) – Digisol Fast Ethernet Unmanaged Desktop Switch with 8 PoE Ports and 1 Uplink Port

DIGISOL DG-FS1009PF-A is an eight port Fast Ethernet PoE unmanaged switch with 1 uplink port. It is designed to enhance network performance in a compact form factor. The switch offers 8 10/100Mbps Ethernet PoE port compliant with IEEE 802.3af. The PoE ports can be used to power up devices complying with IEEE802.3af using the existing Ethernet cable. The switch uses store and forward packet switching technology which ensures reliable data transfer. The switch also supports automatic MDI/MDI-X detection which eliminates the need of a cross over cables and has an additional dedicated uplink port. This switch also support VLAN mode in which the clients connected to it can only talk with the uplinkport. There is a toggle button on the switch for easy selection of the operational mode. Thus the DG-FS1009PF-A is an ideal solution for small Ethernet work-groups and applications requiring PoE.

Description

KEY FEATURES

  • 9 x10/100Mbps Auto-negotiation Fast Ethernet RJ45 ports
  • Supports PoE on 8 ports
  • Supports PoE power up to 15.4W
  • Complie with IEEE802.3, IEEE802.3u, IEEE802.3x and IEEE802.3af standards
  • Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
  • Supports MDI/MDI-X auto crossover
  • 4K MAC address table
  • Plug and Play installation
  • Supports VLAN mode
  • Max. PoE Budget 120W
  • IEEE802.3at standard
