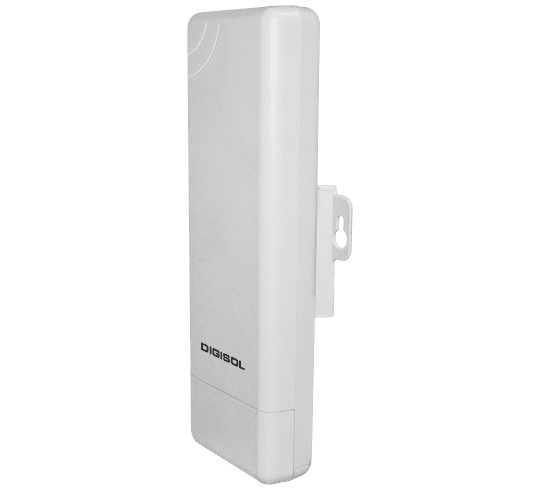

DG-WA1102NPLV2 – Digisol 2.4Ghz Outdoor Access Point
DG-WA1102NPLV2 is an 150Mbps high power outdoor AP. Comply with IEEE 802.11b/g/n standard, 12dBi high gain antenna, 1000mW high power, the transmit/receive wireless distance more than 2000 meters.
It support Wireless AP, Gateway, WISP, Wireless Bridge operation mode, effective solution for PTP, PTMP application and outdoor long range wifi coverage application.
DG-WA1102NPLV2 with ABS waterproof, dustproof and sunscreen shell, temperature adaptive and board protective, Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby, ideal for outdoor use.
- Description
- Download
Description
KEY FEATURES
- Complies with IEEE 802.11b/g/n standards
- Supports 2.4000 to 2.4835GHz frequency bands
- Network data rates up to 150Mbps
- Supports WDS with AP mode
- Supports WEP, WPA, WPA2, 802.1x authentication
- Web-based configuration interface
- Features LNA (Low Noise Amplifier)
- Supports multi operational mode
