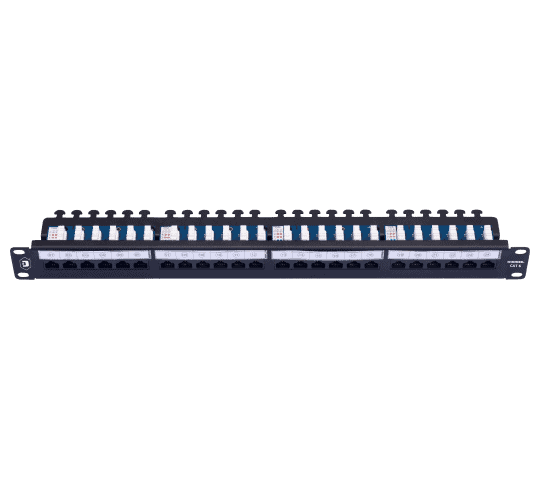

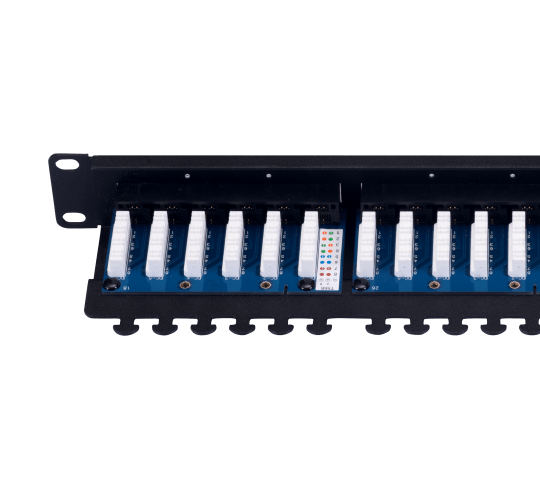

Digisol Enterprise ConvergeX Solderless Patch Panel, 24 Port, Cat 6, UTP, 90°

Digisol Enterprise ConvergeX Solderless Patch Panel, 24 Port, Cat 6, UTP, 90°

This CAT6 patch panel has contact pins and IDCs assembled with solderless process using Press fit technology on Patented PCBs. ​

Due to solderless design, the CAT6 patch panel performance is equal to that of CAT6A type.

Description

KEY FEATURES

  • Contacts pins and IDC mountings assembled in Patented PCBs by Solder-less Press-fit process
  • No oxidization of Contact pins due to absence of soldering flux leading to longer life
  • Fully (360 degree covered) 30 microns Gold plated Contact pins, for better for PoE Application.
  • Higher flexibility of square pins used here instead of the single side Gold Plated stamped pins used by other brands
  • 6 Port Jack configuration specially designed & molded in ABS Fire retardant material.
  • 90 Degree Punch-Down design for easy assembly on site.
  • Exceeds ANSI/TIA-568-C.2 standard, and supports 1000-BASE-T
  • IDC Accommodates 22~26 AWG Stranded and Solid wires.
  • Plug Insertion Life : >= 750 Cycles with FCC Compliant RJ-45 Plug
